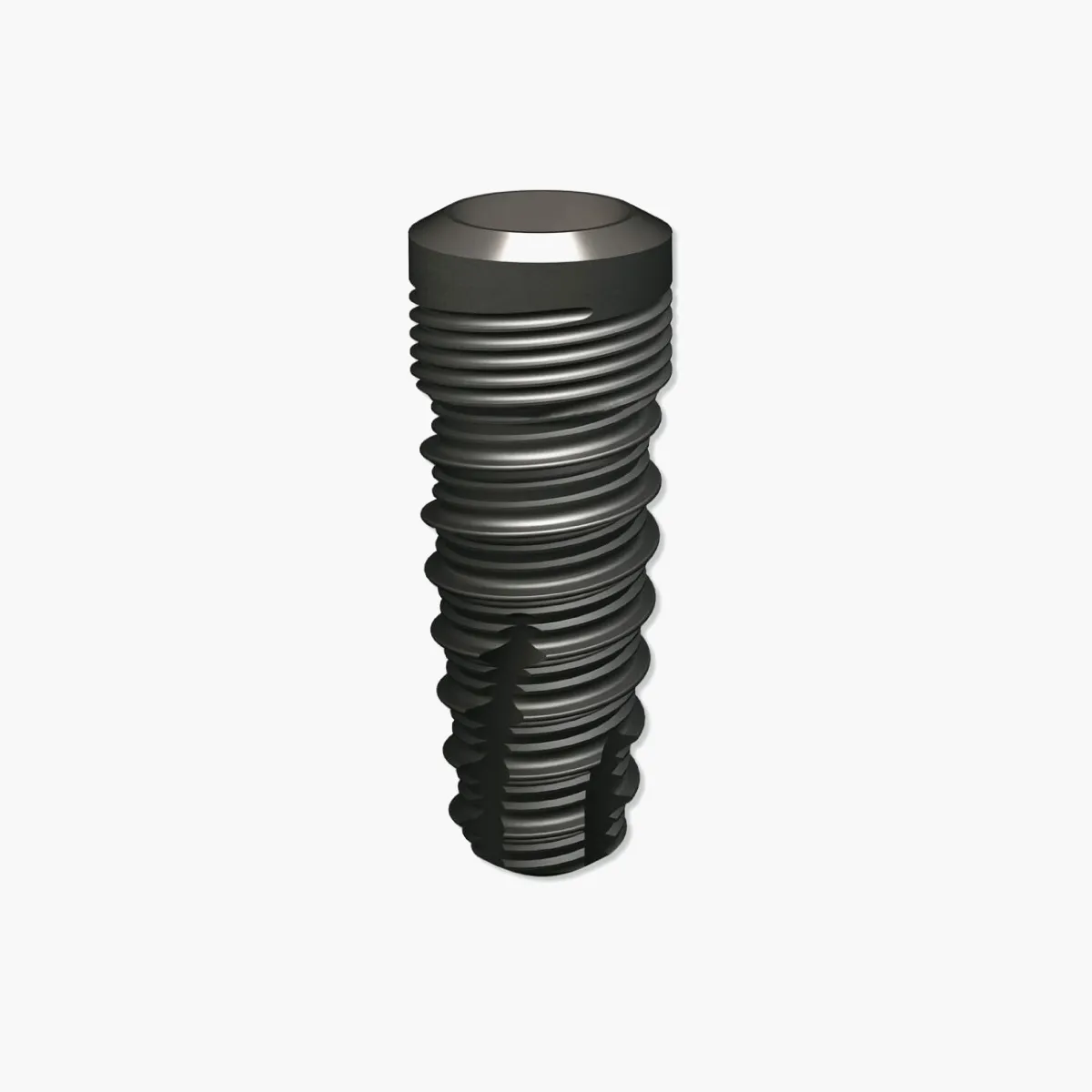

BNX Evo Slim Fit

Evo Slim Fit was created for easy implant placement in D1, D2 (Hard bone) conditions. Read more...

production_quantity_limits Not purchasable



The implant is conical in shape and has microspires that increase the osseointegrable surface area by 30 percent. The microspires in the crestal module extend into the body of the implant, facilitating its screwing verticality and improving its stability. The microspires in the crestal module clamp the implant perfectly, allowing for increased cortical stability. The implant has a rounded apex shape that allows for better insertion into the implant site and maximum gentleness to the tissues. There are also four apical millings that facilitate screwing and collect possible frustules of bone left in situ. The implant is equipped with SWITCH PLATFORM at the collar that promotes maintenance of biological width. CONICA G-CONE connection with 12 positions allows the most harmonious load distribution, best sealing and facilitates angled abutment placement.


Evo SLIM FIT was created for easy implant insertion in D1, D2 ( Hard bone ) conditions.Evo SLIM FIT unlike the Evo implant has an undersized (reduced) body of 0.25 mm, this facilitates its insertion while maintaining a controlled torque, thus avoiding the use of the tap and decreasing the time of the osseointegration process. Evo slim fit allows the practitioner to choose the most appropriate implant diameter according to the patient's bone density.
